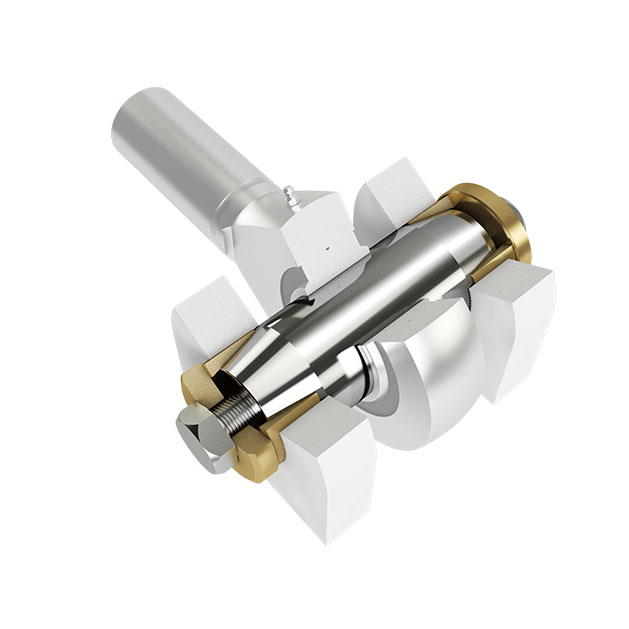

Nord-Lock Group About Expander System The Solution Bolt Fastener with Washer

Axle variant Internal thread
Fastener
Side 1/Side 2		 Hex head bolt /
Hex head bolt
Obstacles outside lugs
Side 1/Side 2		 No obstacle /
No obstacle
Greasing of pivot External or Internal greasing
Standard pin Φ-range Φ 38 mm - (160) mm
Pin length < 2000 mm
Special Upon request



>> Installation instructions
